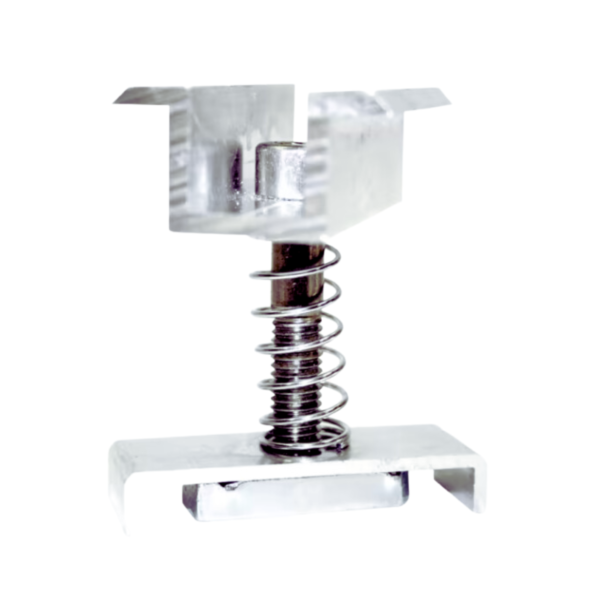

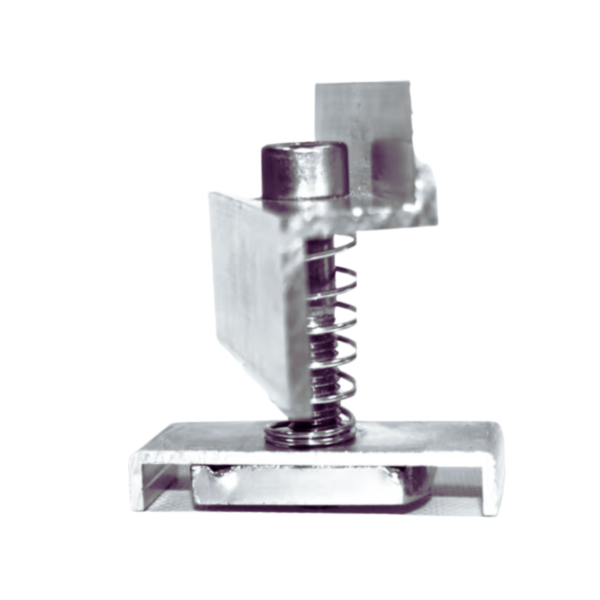

Orbis Italy – MPC-P30R Pre-assembled Central Clamp 27-30

MPC-P are natural aluminum clamps used to secure PV modules on support profiles.

MPC-P is a pre-assembled clamp for central module fixing, available in different models depending on module thickness.

Technical Features

Clamp Material: Aluminum Alloy EN AW-6060 T5

Screw: Stainless TCE M8, AISI 304

Spring: Galvanized Iron (Fe/Zn 7 II machining cycle)

Nut: DDF Steel AISI 304L

Allowable Module Heights: 27 – 30 mm

Clamp width: 60 mm

Color: Natural aluminum

Type: Central Clamp

Surface Treatment: Untreated

Height: 18.7 mm

Depth: 39.6 mm

With Fixing Material: Yes
