Orbis Italy – MPU-P3052 Universal Pre-Assembled Clamp

MPU-P3052 is a device for locking PV modules to the support profiles of the EASY TECH, EASY TECH SMALL, EASY, EASY+, HEAVY MAX, EASY SMALL, EASY WING, and EASY WING SMALL series.

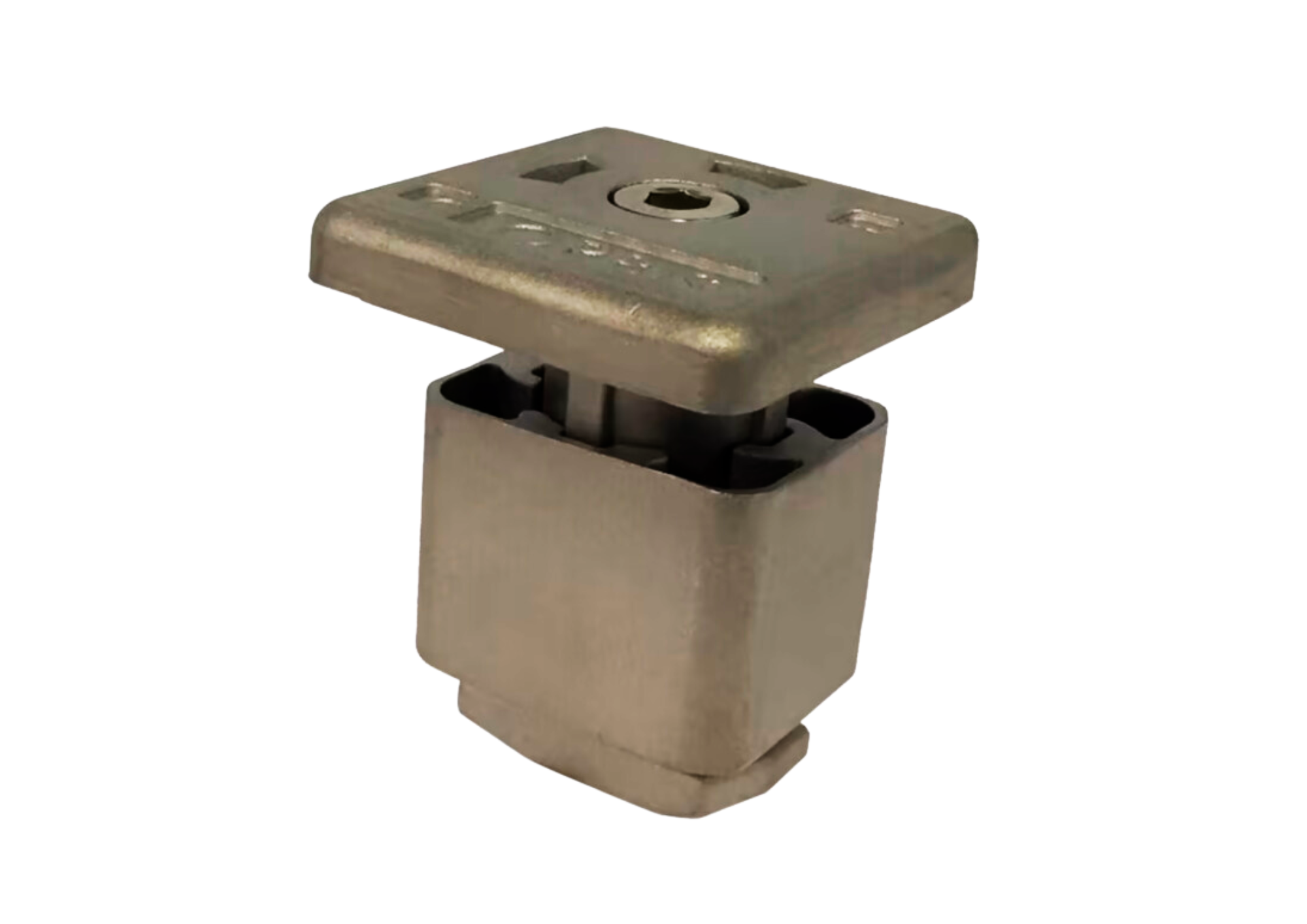

Consisting of two elements, base and head, the device can be configured to be used either as a CENTRAL clamp or as a TERMINAL clamp by rotating the head.

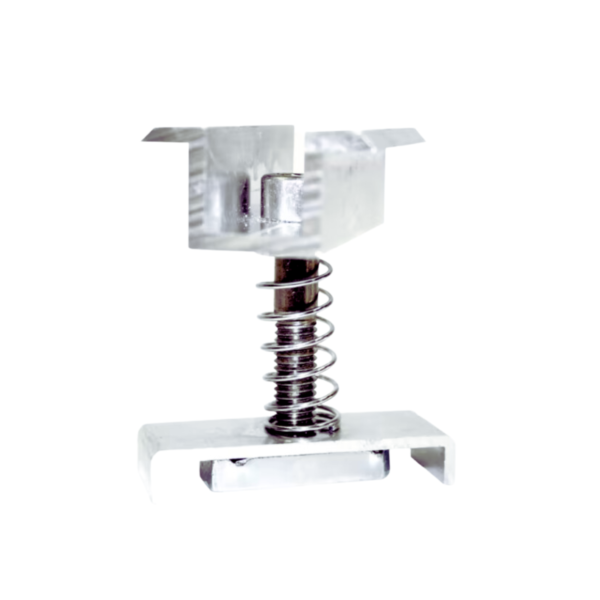

The clamp at the base has a T-shaped element that allows it to be bound to the profile, while a screw passing between the base and the head allows the clamp, exerted by the head, to be adapted to the thickness of the PV module, which can vary from 30 to 50 mm.

TECHNICAL FEATURES

Clamp Material: Aluminum Alloy ADC12

Screw: Stainless A2 TCE M8x45

Spring: Galvanized Iron (Fe/Zn 7 II machining cycle)

Allowable module heights: 30mm to 50mm

Distance between modules: 32 mm

Color: Natural aluminum
